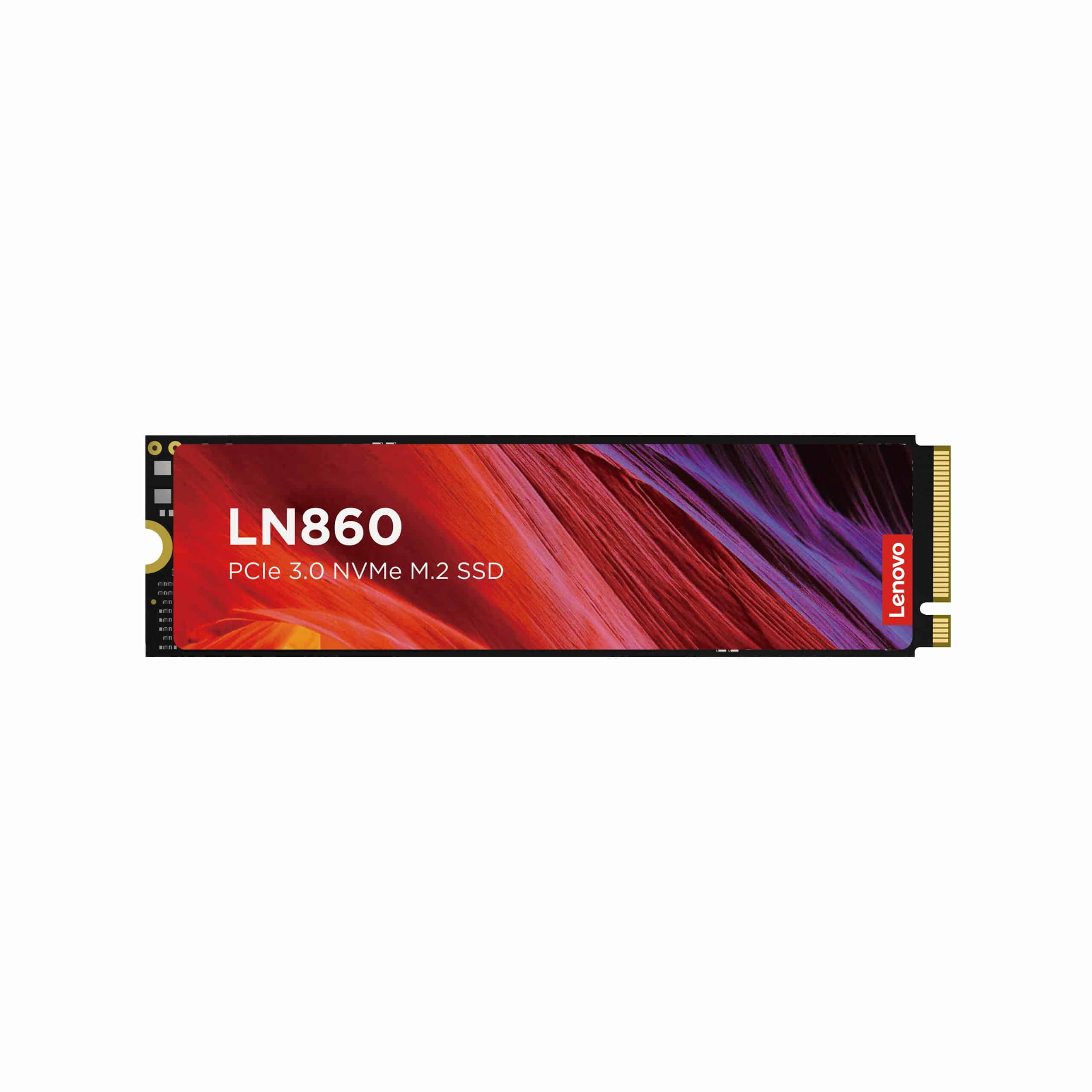

Lenovo LN860 M.2 NVMe SSD
- Read speeds up to 3500 MB/s
- Power-saving energy
- Single-sided board design
High-performance Lenovo PCIe Gen3 x4 controller, NVMe 1.4, and 3500 MB/s sequential read. 2 TB capacity, premium power-saving technology with single-sided board where speed, efficiency, and reliability come together.

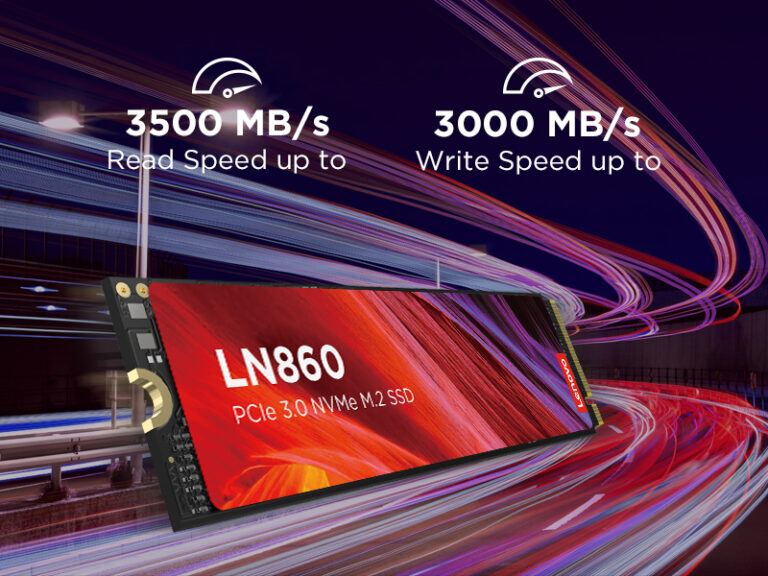

Fast read and write speeds, more reliability

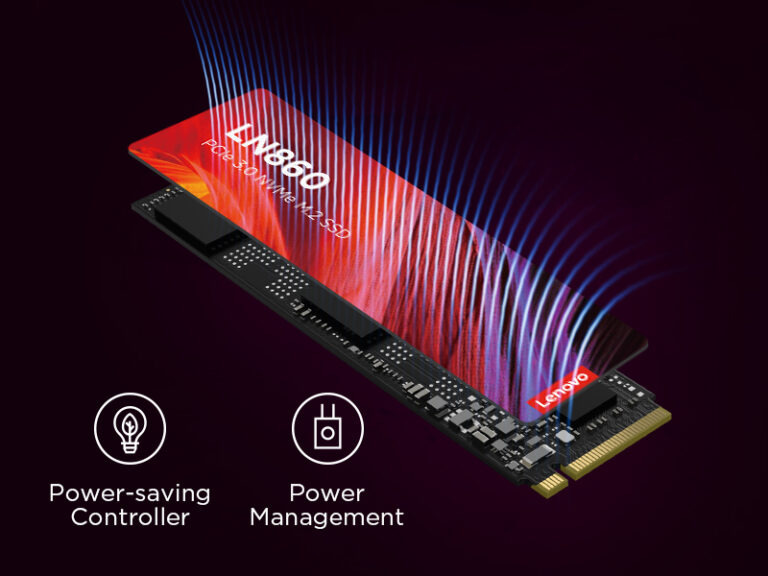

Lenovo’s LN860 SSD employs a DRAM-less design, making use of its sequential read speed up to 3500 MB/s and sequential write speeds up to 3000 MB/s. Whether you’re loading large files or running resource-intensive applications, the Lenovo LN860 SSD delivers exceptional performance.Extend battery life, reduce energy consumption
Optimize your laptop’s power efficiency with the Lenovo LN860 SSD. Thanks to its power-saving technology, you’ll enjoy extended battery life while maintaining high-speed data access.

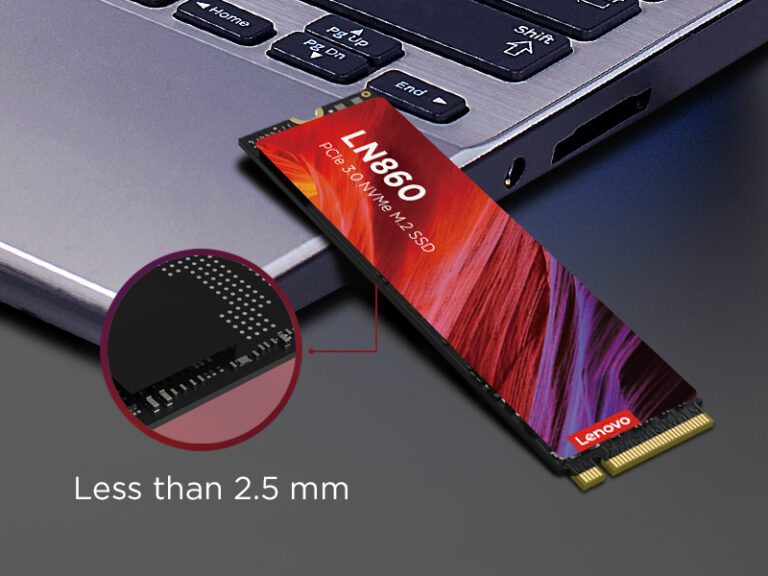

Slim elegance, maximum portability
Lenovo LN860 SSD boasts a sleek single-sided PCB design with a thickness of less than 2.5 mm, making it the perfect fit for a wide range of ultrathin laptops. Elevate your laptop’s storage capacity without compromising its slim and lightweight form.Premium 3D NAND for unwavering stability
Built from original high-quality 3D NAND, the Lenovo LN860 SSD offers exceptional stability and durability. Your data remains safe and secure, and the drive maintains consistent performance over time.
High-end consumer-grade SSD controller

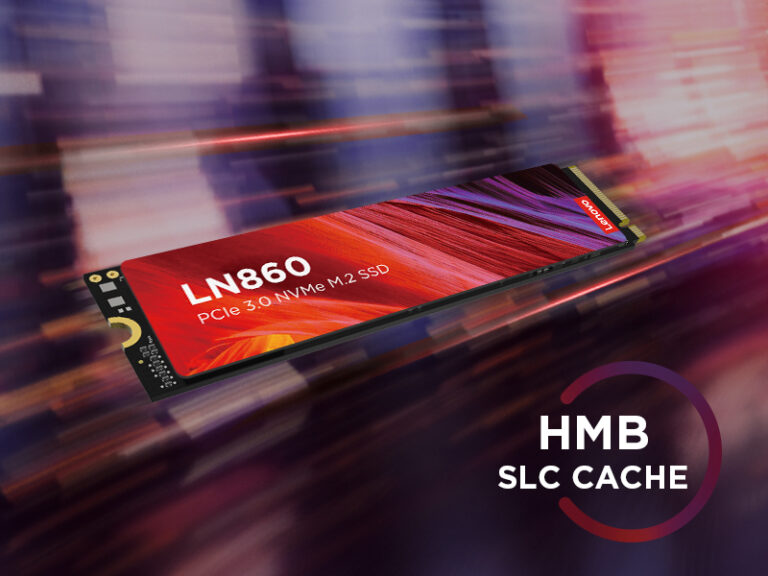

The Lenovo LN860 SSD features a cutting-edge SSD controller designed for high-end consumer applications. With PCIe Gen3 x4 and NVMe 1.4 interface support, along with HMB functionality, it breaks free from the limitations of traditional DRAM-Less SSD controllers. Achieve industry-leading performance at an affordable cost.Less latency by design, better performance
LN860 SSD supports Host Memory Buffer (HMB) function which enables the underlying storage to make use of a portion of host memory effectively reducing SSD latency by simulating SLC cache, enabling easier game loading and small files transmission.

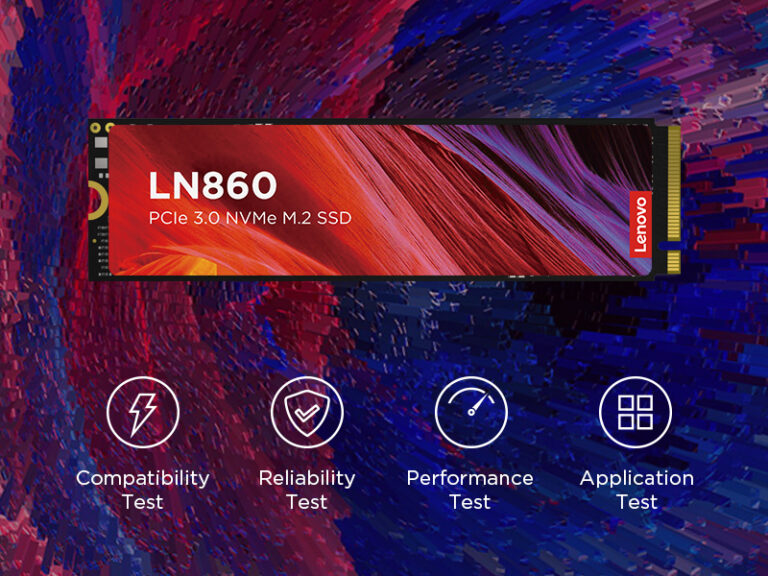

Tried and tested, technical expertise
Lenovo LN860 SSD uses only high-quality original wafers. From design to material selection, from production to quality control, the unit undergoes multiple tests and rigorous evaluations to ensure higher reliability and excellent performance overall.Free Acronis back-up software
With our free customized version of Acronis True Image, you gain access to effortless backup capabilities. This powerful cloning software makes it easier for you to get started with your new drive. Also, you can easily back-up your drive-in case of natural disasters or emergencies, ensuring the preservation, security, and privacy of your valuable data.
Guard yourself against the threat of ransomware! Our specialized Acronis version also includes complimentary ransomware protection.
Product Specifications |
||||
|---|---|---|---|---|
| Interface | PCIe Gen 3 x 4, NVMe 1.4 | |||
| Form Factor | M.2 2280 | |||
| Capacity | 256 GB | 512 GB | 1 TB | 2 TB |
| Sequential Read Speed (Up to) | 3100 MB/s | 3500 MB/s | 3500 MB/s | 3350 MB/s |
| Sequential Write Speed (Up to) | 1800 MB/s | 1900 MB/s | 3000 MB/s | 3000 MB/s |
| 4K Random Read Speed (Up to) | 240 K IOPS | 470 K IOPS | 480 K IOPS | 420 K IOPS |
| 4K Random Write Speed (Up to) | 290 K IOPS | 370 K IOPS | 380 K IOPS | 370 K IOPS |
| Max. Power Consumption (Read) | 2.0 W | 2.0 W | 2.0 W | 2.3 W |
| Max. Power Consumption (Write) | 2.2 W | 2.8 W | 2.9 W | 3.5 W |
| Max. Power Consumption (Idle) | 0.5 mW | 0.5 mW | 0.5 mW | 0.5 mW |
| Dimensions | 80.00 x 22.00 x 2.40 mm | |||
| Weight | < 10 g | |||
| MTBF | 1,500,000 hours | |||
| Operating Temperature | 0 °C to 70 °C | |||
| Storage Temperature | -40 °C to 85 °C | |||
| Shock Resistance | 100 G / 6 ms | |||
| Vibration Resistance | 3.1 GRMS (2-500 Hz) | |||
| Certifications | CE, UKCA, RCM, BSMI, KC, RoHS, CB, VCCI, WHQL | |||
| Warranty | 5-Year / 200 TBW |
5-Year / 400 TBW |
5-Year / 800 TBW |
5-Year / 1600 TBW |
